The W8104D-2, W8105L-2, and W8116D series represent a highly versatile range of isolation driver components engineered to deliver exceptional performance across diverse electronic systems. These components are specifically designed to address the complex requirements of modern circuit design, ensuring optimal signal integrity and operational safety across multiple demanding sectors.
Signal isolation: In complex industrial automation and control environments, protecting sensitive microcontrollers and logic circuits from high-voltage transients is paramount. This component provides robust galvanic isolation, effectively blocking electrical noise and preventing ground loop currents from degrading signal accuracy or damaging delicate downstream components.
On-off circuit: Functioning as a highly reliable switching element, this device facilitates precise control over power distribution networks. Its efficient switching characteristics minimize energy loss during state transitions, making it an ideal choice for sophisticated power management systems that require rapid and dependable on-off functionality.
Motor drive circuit: Electric motor control systems demand consistent and clean gate drive signals to operate efficiently. By integrating this isolation chip into stepper motor, servo motor, or variable frequency drive designs, engineers can ensure stable signal transmission between the low-voltage control logic and the high-power switching stages, thereby enhancing the overall reliability and lifespan of the motor drive architecture.
Ignition control circuit: Automotive and industrial combustion systems operate in inherently harsh environments characterized by extreme electrical noise and thermal stress. This component delivers the precise timing and resilient performance necessary for ignition control modules, ensuring consistent spark generation and optimal engine efficiency under all operating conditions.
Replace the pulse: Traditional pulse transformers are often bulky and susceptible to electromagnetic interference. This advanced solid-state isolation solution serves as a superior alternative, allowing designers to replace legacy pulse transformers. This transition not only saves valuable printed circuit board space but also eliminates issues related to magnetic saturation and external field interference, leading to more compact and reliable electronic assemblies.
The engineering behind this series of isolation driver chips focuses on maximizing operational efficiency, ensuring long-term durability, and simplifying the integration process for electronic design engineers. Every feature is tailored to solve real-world circuit design challenges.
Bidirectional configuration: The advanced bidirectional signal handling capability significantly simplifies printed circuit board layout. By accommodating multi-directional signal flows without requiring redundant components, this feature enhances design flexibility and reduces the overall footprint of complex signal routing networks.
Output level is normally open: Designed with a normally open output state, this component provides an inherent failsafe mechanism for critical control loops. In the event of a system fault or power interruption, the circuit defaults to a safe, disconnected state, preventing unintended activation of high-power loads and protecting both the equipment and operators.
Maximum output voltage 60V and Rated output current 0.3A: With the capacity to handle up to sixty volts and sustain a steady current, this device is perfectly suited for driving a wide array of intermediate loads. This robust power handling capability ensures that the chip can directly interface with various relays, actuators, and power transistors without requiring additional amplification stages.
Maximum output on resistance 2Ω: Energy efficiency is a critical metric in modern electronics. The ultra-low on-state resistance drastically reduces power dissipation and minimizes thermal buildup during continuous operation. This exceptional thermal efficiency contributes to the overall stability of the system and extends the operational lifespan of the surrounding components.
Working temperature -55℃ to +100℃: Industrial applications frequently expose electronic components to extreme environmental conditions. To guarantee uncompromising reliability, these chips undergo rigorous high and low-temperature cycling alongside comprehensive aging tests. This meticulous quality control process ensures stable, uninterrupted operation across a massive temperature spectrum.
Industry certification and environmental compliance: Meeting the stringent demands of the global electronics manufacturing market, this product line is fully compliant with international environmental directives, including the Restriction of Hazardous Substances and the Registration, Evaluation, Authorisation and Restriction of Chemicals standards. This commitment to eco-friendly manufacturing ensures seamless market access and aligns with sustainable production practices.
Seamless drop-in replacement compatibility: To accelerate time-to-market and minimize redesign overhead, these isolation chips are engineered with standard dual in-line package and surface-mount device footprints. This strategic design choice allows them to serve as perfect, drop-in replacements for similar isolation and driver chips from mainstream international brands, offering a cost-effective upgrade path without modifying existing board layouts.

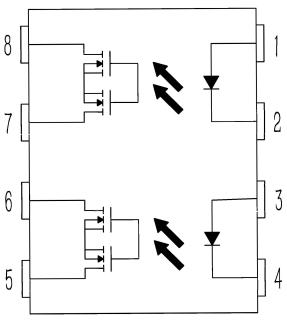

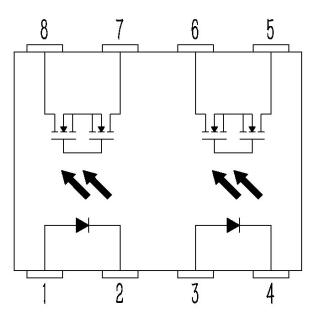

Model | Package | Dimension(mm) | Pin Definition (top view) |

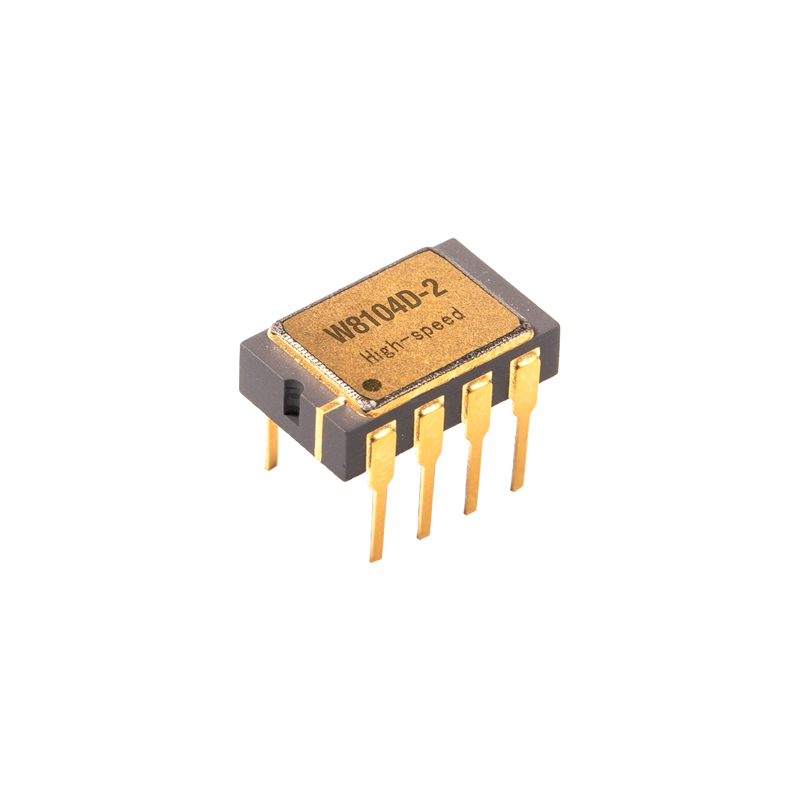

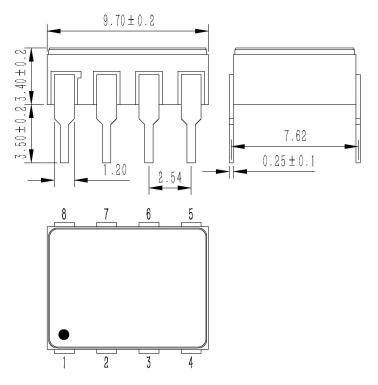

W8104D-2 | DIP8/dual channel |  |  |

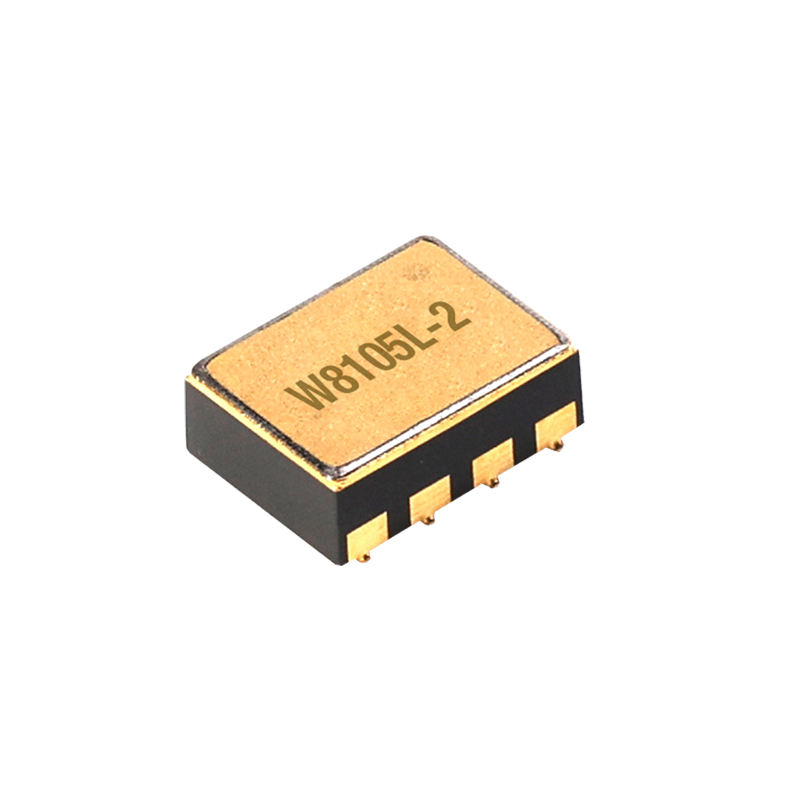

W8105L-2 | SMD8 / dual channel |  |  |

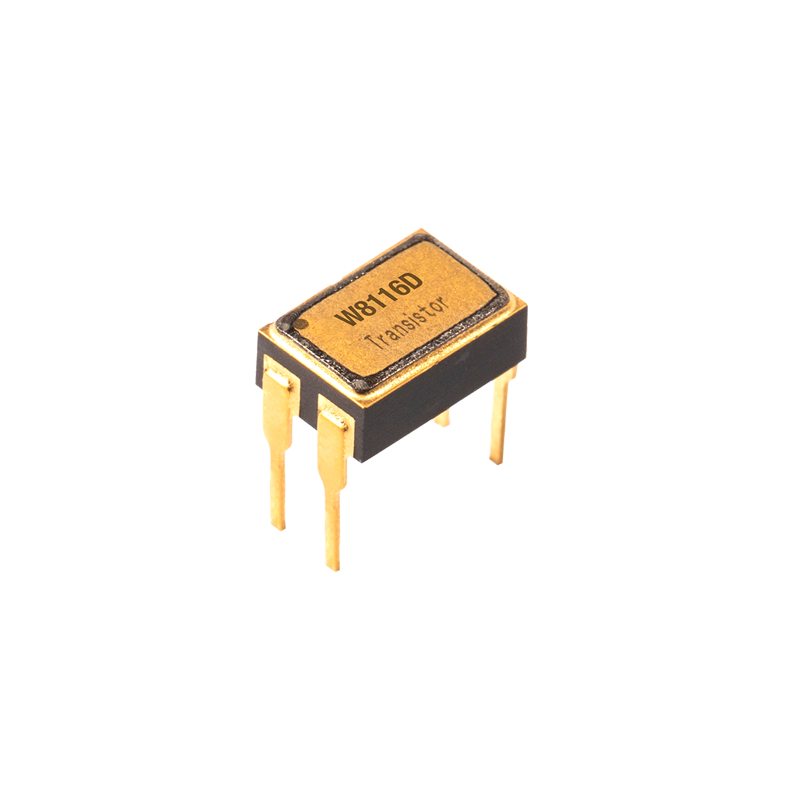

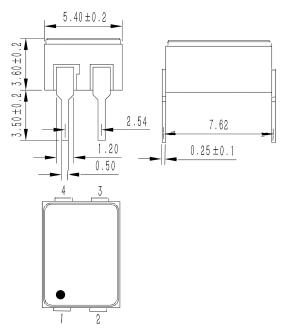

W8116D | DIP4/single channel |  |  |
To ensure seamless integration into modern manufacturing workflows, we provide versatile packaging specifications tailored to different production scales. Depending on the specific model and your assembly line requirements, these components are available in standardized anti-moisture tube packaging or convenient tape and reel formats. This flexibility ensures perfect compatibility with automated surface mount technology placement machines, significantly increasing manufacturing throughput and reducing assembly errors for high-volume production runs.
Securing a reliable component supply is just as critical as the technical specifications of the parts themselves. Leveraging extensive mass production capabilities and a meticulously managed safety stock system, we deliver unwavering supply chain stability. Our streamlined logistics network enables us to provide rapid and dependable delivery commitments for large-scale procurement demands, ensuring that your production schedules remain completely uninterrupted regardless of market fluctuations.
Furthermore, our commitment to your success extends far beyond the physical delivery of components. We provide comprehensive technical support and design assistance to accelerate your development cycle. Our dedicated field application engineering team is readily available to supply detailed performance test reports, proven application reference circuits, and personalized guidance for component selection. From the initial design phase through to post-sales troubleshooting, our experts are here to ensure your electronic systems achieve optimal performance and reliability.
