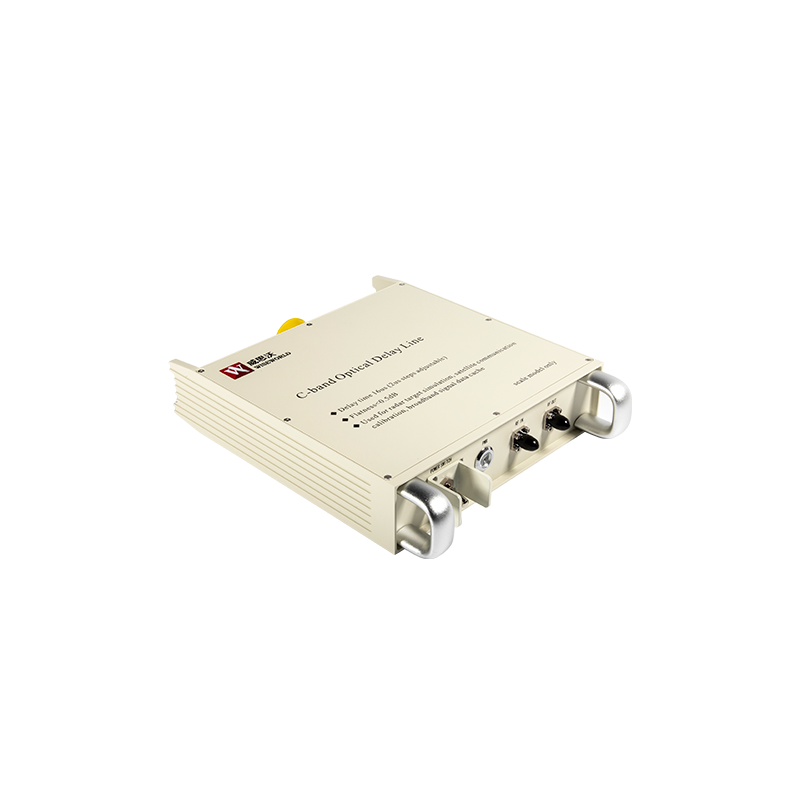

The C-band Optical Delay Line is a high-performance signal processing device engineered for precise delay processing of C-band pulse-modulated signals. This advanced system integrates core components including an optical transmitter, optical receiver, optical switch array, extended fiber optic cable, and microwave amplification components. It stands out in the market for its exceptional performance metrics and customizable design, making it a top choice for high-precision signal processing scenarios.
What sets this device apart is its ability to maintain ultra-flat transmission within the operating band and deliver highly stable output power, while offering adjustable delay time with nanosecond-level precision. Whether for satellite communication calibration, radar signal simulation, or electronic surveillance signal caching, the C-band Optical Delay Line provides reliable and accurate delay processing solutions that meet the stringent requirements of modern communication and defense systems. It can be fully customized according to specific user needs, ensuring perfect compatibility with diverse application environments.
The device supports an adjustable delay time up to 16 microseconds, with a fine step increment of 2 microseconds. This flexible adjustment range allows users to set the exact delay time required for different signal processing tasks. It achieves a delay precision exceeding 1 nanosecond, ensuring that the signal delay is controlled with minimal error, which is critical for high-precision applications.
It maintains a flatness of less than 0.5 dB within the operating band. This ultra-low flatness ensures that the signal amplitude remains consistent during transmission and delay processing, avoiding signal distortion caused by amplitude fluctuations. It effectively guarantees the integrity of the C-band pulse-modulated signals throughout the processing chain.
The output power deviation is kept below 0.1 dB, providing exceptional power stability. Stable output power is essential for ensuring the consistency of signal transmission and reception, especially in long-term continuous operation scenarios. It eliminates the impact of power fluctuations on subsequent signal processing equipment.
The C-band Optical Delay Line supports customization based on user-specific requirements. Users can request adjustments to delay time range, step increment, or component configuration to adapt to unique application scenarios. This customization capability greatly enhances the device’s versatility and applicability across different industries.
In satellite communication calibration systems, precise signal delay is required to align and calibrate the communication links between ground stations and satellites. The device’s high precision and stable performance ensure accurate calibration results, improving the reliability and communication quality of the satellite system.
Radar signal simulators need to generate delayed radar signals to test the response performance of radar receivers. The adjustable delay time and high precision of this optical delay line make it ideal for simulating different radar signal propagation delays, supporting the testing and optimization of radar systems.
For electronic surveillance systems, the device can be used as a signal cache component to store and delay captured broadband signals temporarily. This function enables the system to process and analyze the signals in a timely manner, enhancing the surveillance system’s ability to capture and process target signals.
It is also suitable for broadband signal data cache applications in communication and data processing fields. The device can handle large-bandwidth signals, providing stable and reliable data cache services to support the efficient operation of data processing systems.
Parameter | Value |
Maximum Adjustable Delay Time | 16 μs |
Delay Step Increment | 2 μs |
Operating Band Flatness | < 0.5 dB |
Output Power Deviation | < 0.1 dB |
Delay Precision | > 1 ns |
Applicable Signal Type | C-band pulse-modulated signals |
Customization Support | Available |
The current stock quantity of the C-band Optical Delay Line is 1 unit. For bulk purchase requirements, please contact our sales team in advance to confirm the delivery time.
We provide comprehensive customization services according to user requirements. You can customize parameters such as delay time range, step increment, and component configuration. Our engineering team will work closely with you to ensure the customized product meets your exact needs.
If you have any questions about product performance, pricing, or customization, please click the “Inquire” button on our product page. Our professional sales team will reply to you within 24 working hours and provide you with detailed product information and quotation services.
The device’s minimum delay time is determined by the step increment of 2 μs, and the adjustable delay time starts from the minimum step value up to the maximum of 16 μs. For special minimum delay requirements, please consult our customization service.
This device is primarily designed for C-band pulse-modulated signals. For signals of other frequency bands, we can provide customized solutions based on your specific needs.
The customization cycle depends on the complexity of the requirements. Generally, it takes 2–4 weeks for standard customization. For more complex customization needs, the cycle will be adjusted accordingly, and our team will inform you of the specific time in advance.
Yes, the C-band Optical Delay Line comes with a 1-year warranty. During the warranty period, we provide free maintenance and replacement services for non-human damage failures.
