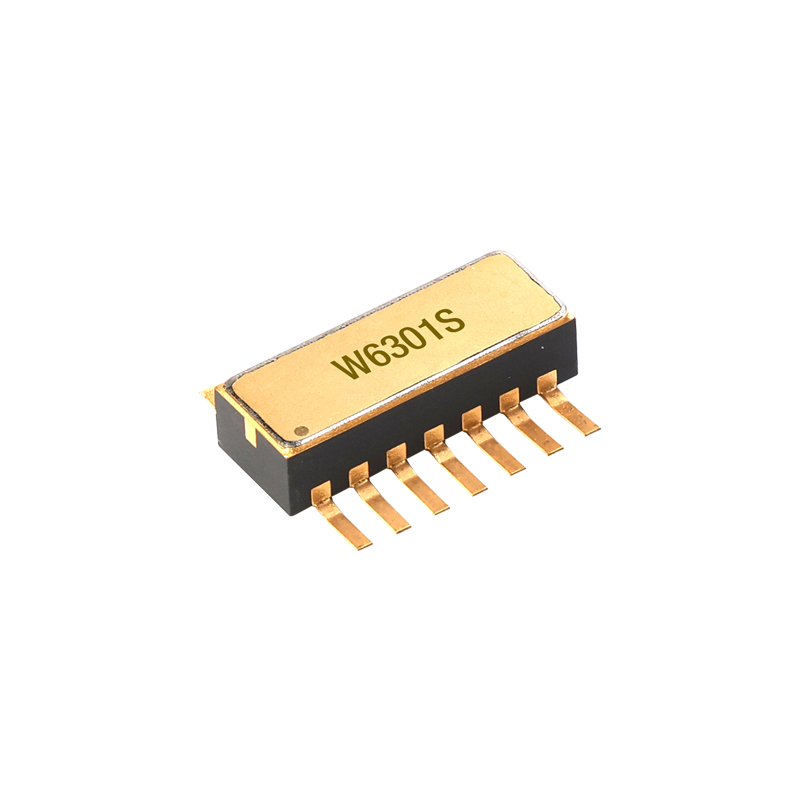

Linear W6301S

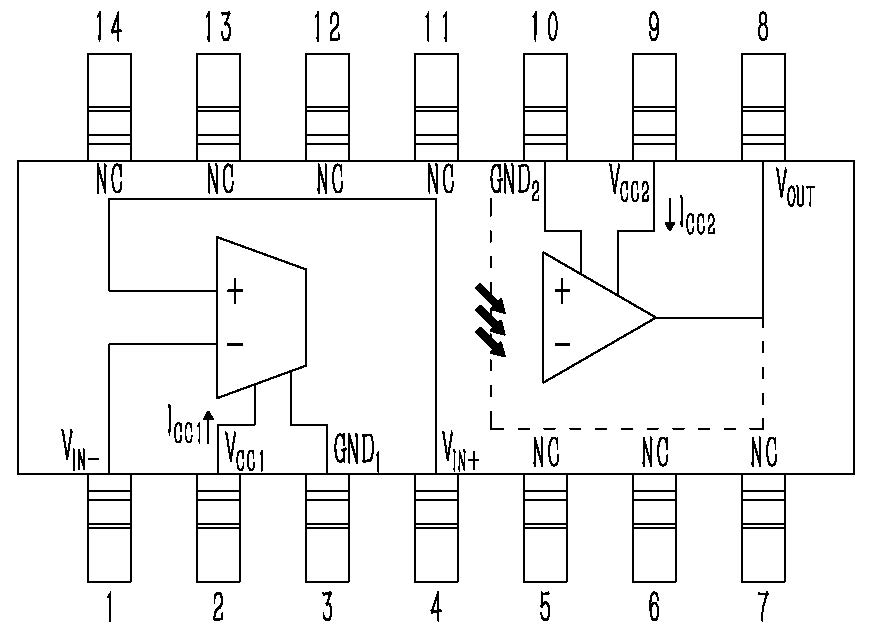

This linear optocoupler integrates a high-speed LED, transistor, optical transistor, and operational amplifier into a ceramic package using thick-film technology. The integration of these multiple components within a single ceramic package significantly minimizes parasitic capacitances and inductances between internal elements, thereby enhancing the signal transmission speed and stability, especially in high-frequency analog applications. The ceramic packaging not only ensures excellent thermal management by efficiently dissipating heat generated during operation, which is crucial for maintaining consistent performance and prolonging the device's operational lifespan, but also provides robust mechanical protection and superior insulation properties, allowing the optocoupler to operate reliably in harsh industrial environments with potential mechanical stress, vibration, and electrical noise. The operational amplifier included in the design enables internal feedback, which effectively improves the linearity of the transfer characteristic, ensuring that the output analog signal accurately replicates the input signal with minimal distortion. It is suitable for precision analog signal isolation tasks in applications such as industrial process control systems, medical equipment, and power supply monitoring, where maintaining signal integrity and high isolation performance are of paramount importance.
