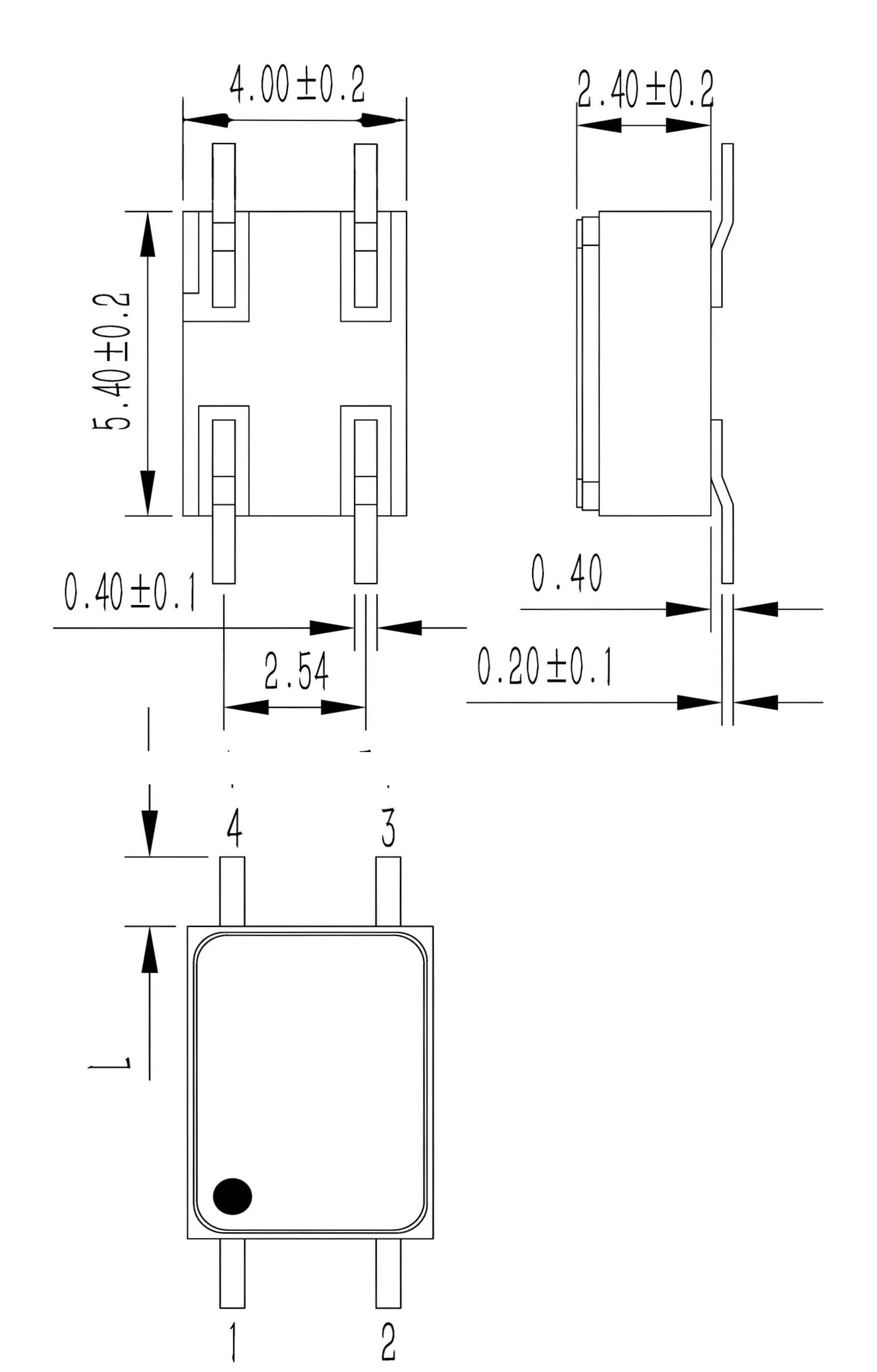

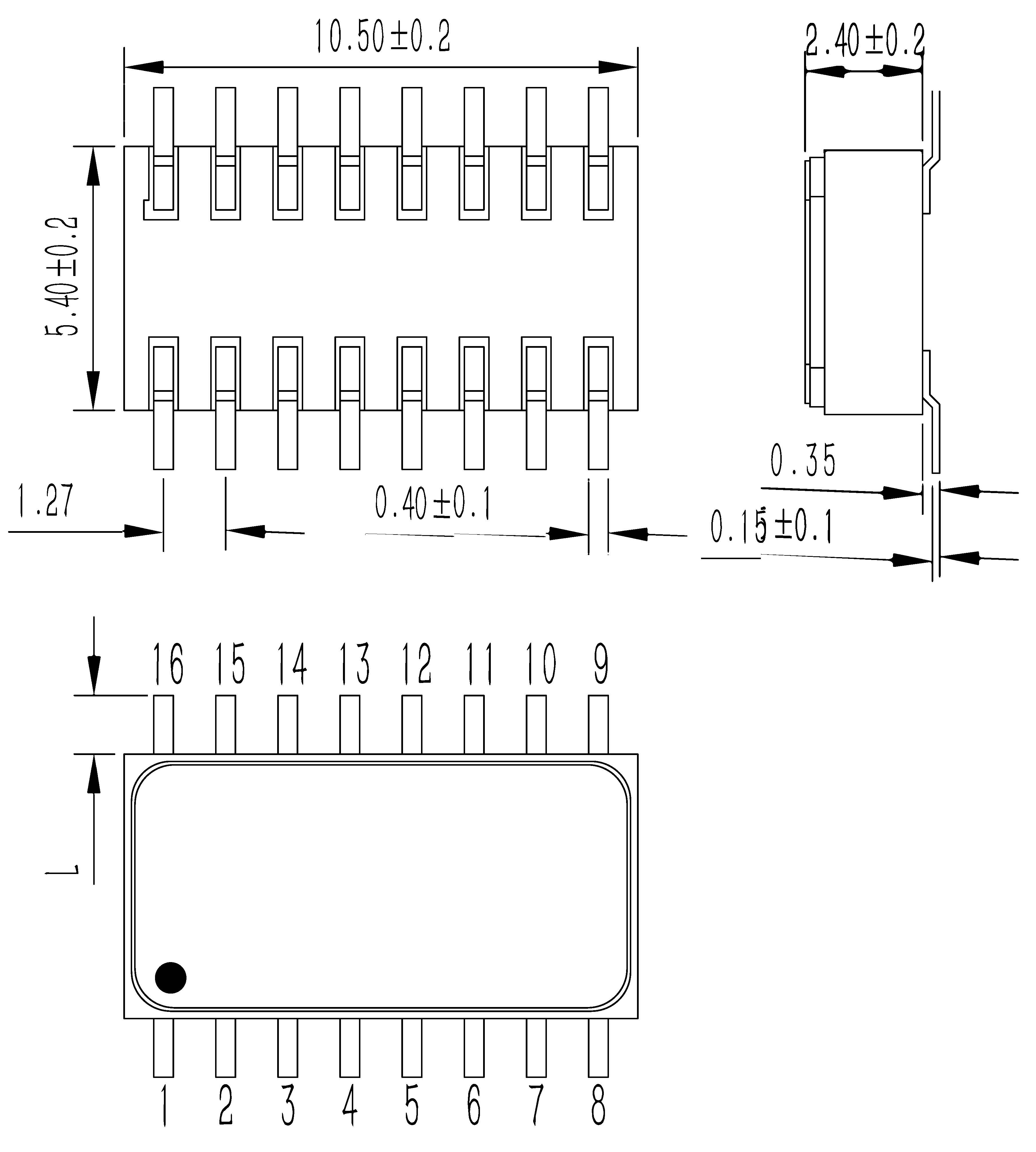

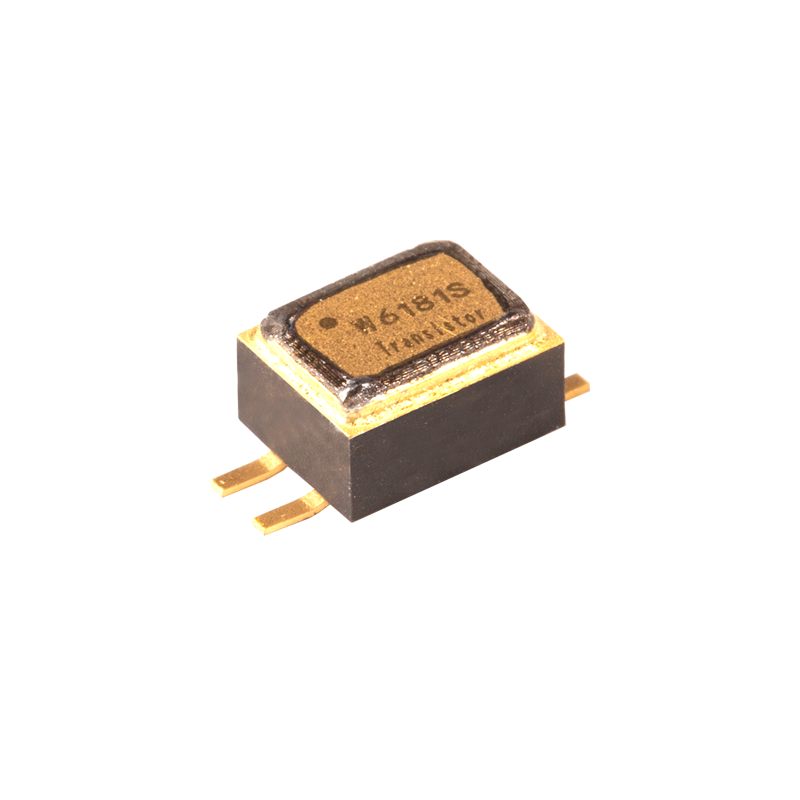

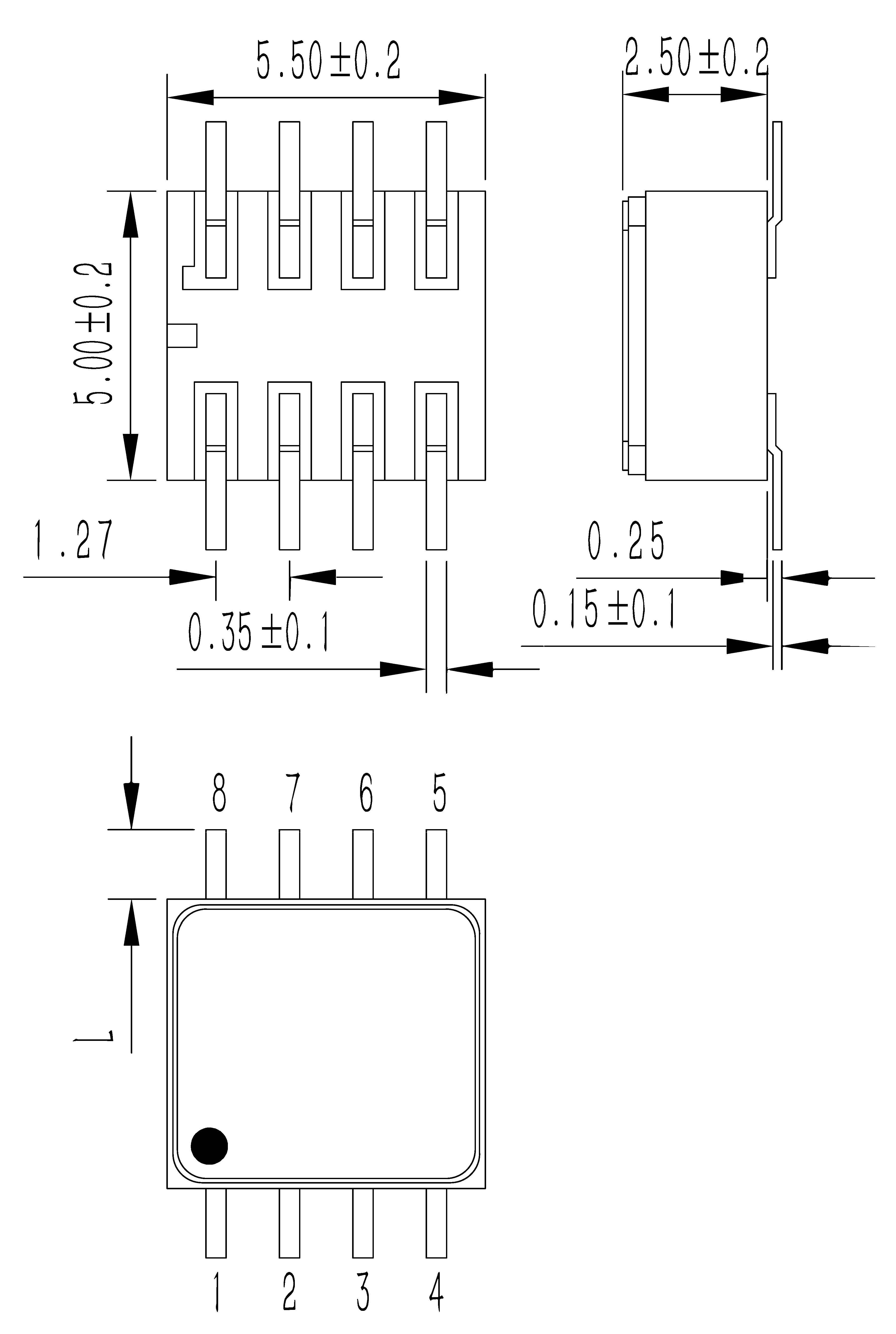

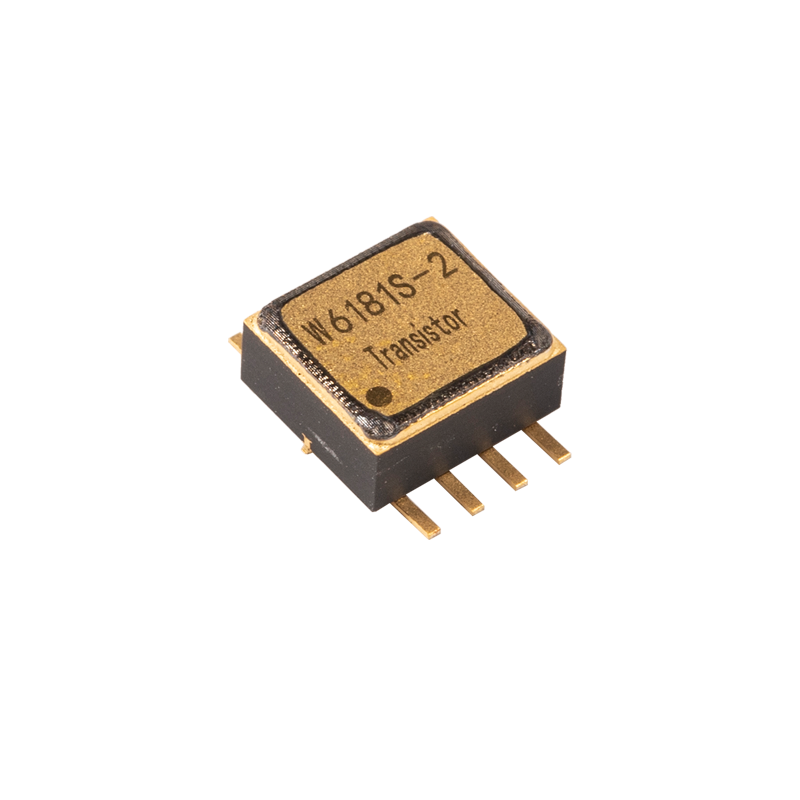

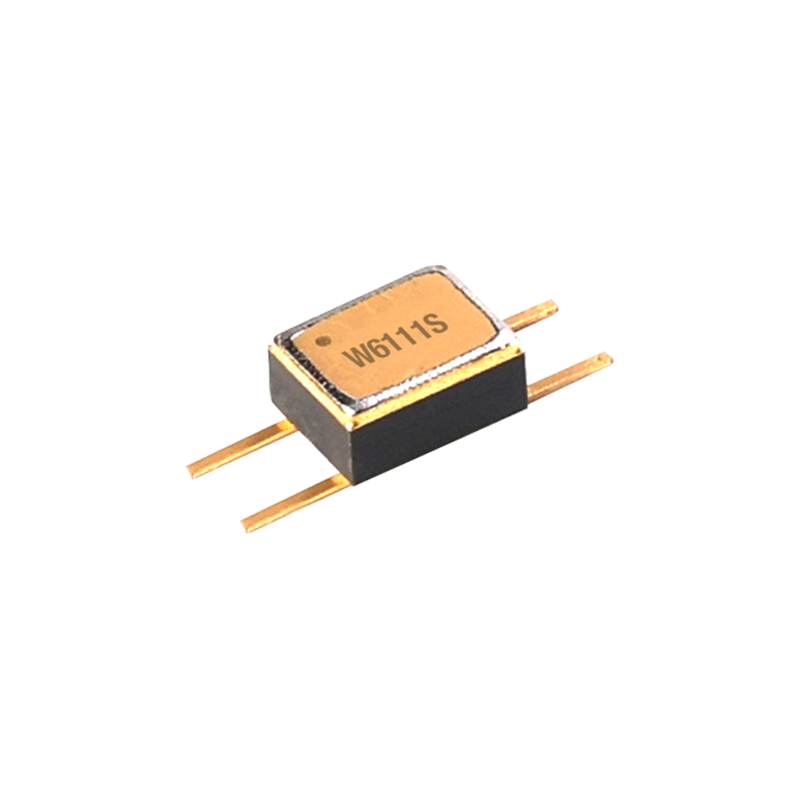

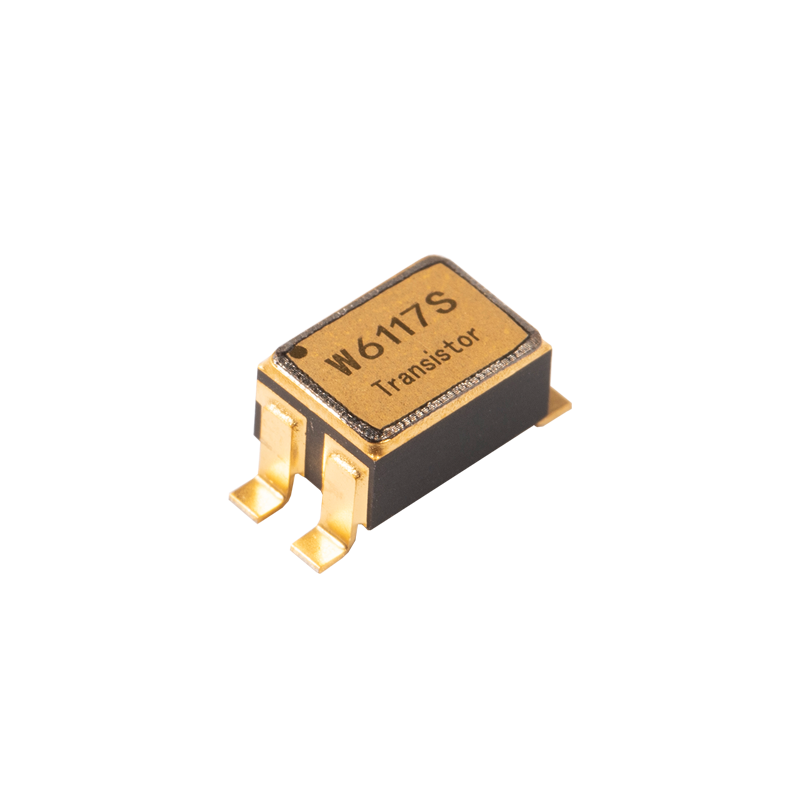

Transistor W6181S/W6181S-2/W6181S-4/W6117S/W6111S

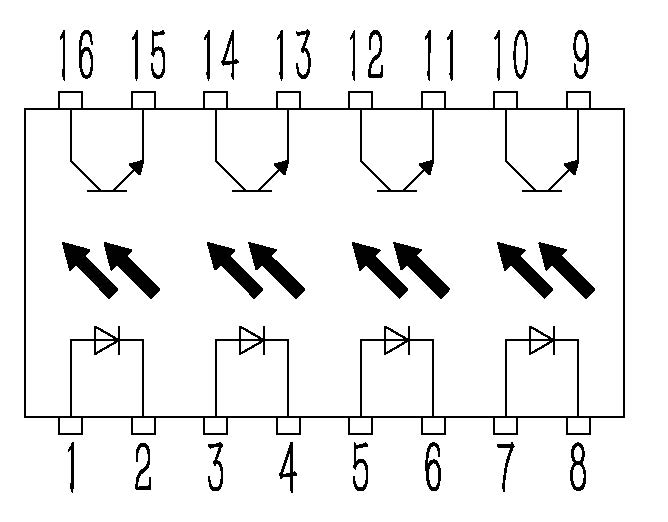

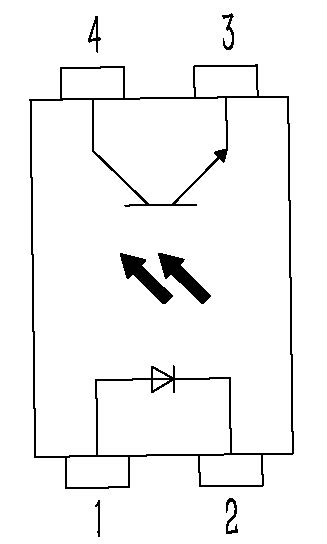

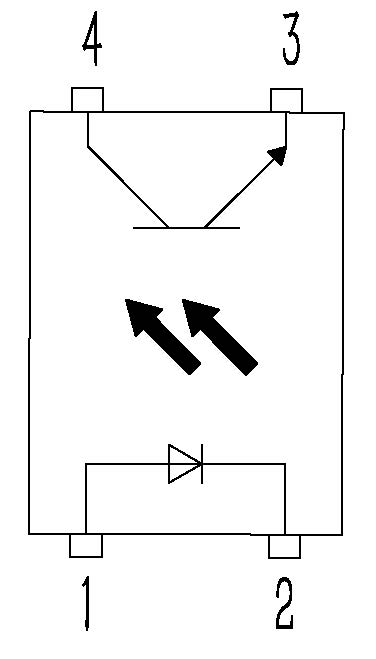

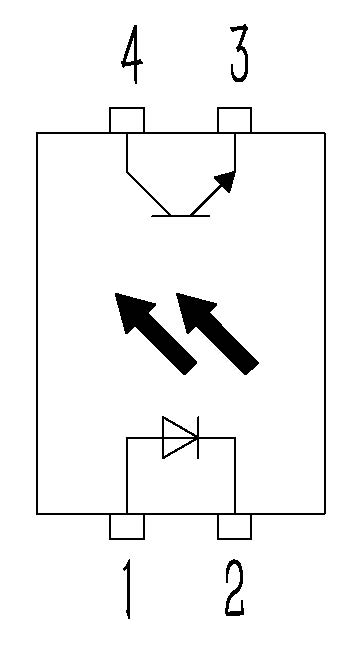

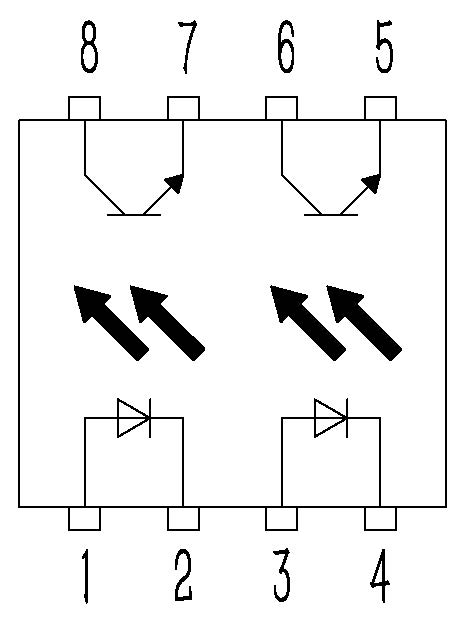

This series of optocouplers use thick film technology to integrate infrared emitting diodes and optical transistors in a ceramic tube shell with single-channel, dual-channel, and quad-channel available. The product uses a optical transistor output method which has high reliability and strong environmental adaptability.

The ceramic tube shell not only provides excellent mechanical protection but also ensures stable optical coupling performance by minimizing light leakage and external light interference. The thick film technology employed in the manufacturing process enables precise control of the device parameters, resulting in consistent electrical and optical characteristics across the product series. The infrared emitting diodes within the optocouplers emit infrared radiation with high efficiency and stability, ensuring reliable activation of the optical transistors. The optical transistor output, being a key feature, offers several advantages such as fast switching speed, low saturation voltage, and good linearity in its operating region, making the optocouplers suitable for a wide range of signal transmission and isolation applications. Additionally, the strong environmental adaptability of these optocouplers allows them to operate reliably in various rigid conditions, including a wide temperature range from -55℃～+125℃ , high humidity, and moderate levels of vibration and shock, ensuring long-term performance stability in industrial, automotive, and consumer electronics applications.
